VBLL Classification¶
In this notebook, we walk through implementing VBLL classification models, including out of distribution detection.
If you are new to VBLL models, we recommend checking out the regression notebook first!
[1]:
!pip install vbll
import vbll
import torch
import torch.nn as nn
import torch.nn.functional as F
import numpy as np
from dataclasses import dataclass
from torch.utils.data import DataLoader
import torchvision.datasets as datasets
from torch.utils.data import Dataset
from torchvision.transforms import ToTensor
from torchvision import transforms
from PIL import Image
import matplotlib.pyplot as plt
from sklearn import metrics
from tqdm import tqdm
from matplotlib.pyplot import cm
Requirement already satisfied: vbll in /usr/local/lib/python3.10/dist-packages (0.1.3)
Requirement already satisfied: numpy>=1.21.0 in /usr/local/lib/python3.10/dist-packages (from vbll) (1.25.2)
Requirement already satisfied: torch>=1.6.0 in /usr/local/lib/python3.10/dist-packages (from vbll) (2.2.1+cu121)
Requirement already satisfied: filelock in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (3.13.4)
Requirement already satisfied: typing-extensions>=4.8.0 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (4.11.0)
Requirement already satisfied: sympy in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (1.12)
Requirement already satisfied: networkx in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (3.3)
Requirement already satisfied: jinja2 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (3.1.3)
Requirement already satisfied: fsspec in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (2023.6.0)
Requirement already satisfied: nvidia-cuda-nvrtc-cu12==12.1.105 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (12.1.105)
Requirement already satisfied: nvidia-cuda-runtime-cu12==12.1.105 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (12.1.105)
Requirement already satisfied: nvidia-cuda-cupti-cu12==12.1.105 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (12.1.105)
Requirement already satisfied: nvidia-cudnn-cu12==8.9.2.26 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (8.9.2.26)
Requirement already satisfied: nvidia-cublas-cu12==12.1.3.1 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (12.1.3.1)
Requirement already satisfied: nvidia-cufft-cu12==11.0.2.54 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (11.0.2.54)
Requirement already satisfied: nvidia-curand-cu12==10.3.2.106 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (10.3.2.106)
Requirement already satisfied: nvidia-cusolver-cu12==11.4.5.107 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (11.4.5.107)
Requirement already satisfied: nvidia-cusparse-cu12==12.1.0.106 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (12.1.0.106)
Requirement already satisfied: nvidia-nccl-cu12==2.19.3 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (2.19.3)
Requirement already satisfied: nvidia-nvtx-cu12==12.1.105 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (12.1.105)
Requirement already satisfied: triton==2.2.0 in /usr/local/lib/python3.10/dist-packages (from torch>=1.6.0->vbll) (2.2.0)
Requirement already satisfied: nvidia-nvjitlink-cu12 in /usr/local/lib/python3.10/dist-packages (from nvidia-cusolver-cu12==11.4.5.107->torch>=1.6.0->vbll) (12.4.127)
Requirement already satisfied: MarkupSafe>=2.0 in /usr/local/lib/python3.10/dist-packages (from jinja2->torch>=1.6.0->vbll) (2.1.5)
Requirement already satisfied: mpmath>=0.19 in /usr/local/lib/python3.10/dist-packages (from sympy->torch>=1.6.0->vbll) (1.3.0)
We will train a small MLP on MNIST. We use Fashion MNIST as an out of distribution dataset. We will also define a simple visualization function, which we will use later.
[2]:
mnist_train_dataset = datasets.MNIST(root='data',
train=True,
transform=transforms.ToTensor(),
download=True)
mnist_test_dataset = datasets.MNIST(root='data',
train=False,
transform=transforms.ToTensor())
mnist_ood_dataset = datasets.FashionMNIST(root='data',
train=False,
transform=transforms.ToTensor(),
download=True)
def viz_performance(logs):
"""
A visualization function that plots losses, accuracies, and out of
distribution AUROC.
logs: a dictionary, with keys corresponding to different model evals and values
corresponding to dicts of results.
"""
# get list of colors
color = cm.rainbow(np.linspace(0, 1, len(logs)))
for i, (k,v) in enumerate(logs.items()):
# train and val loss
plt.plot(v['train_loss'], label=k + ' (train)', color=color[i])
plt.plot(v['val_loss'], label=k + ' (val)', linestyle = '--', color=color[i])
plt.legend()
plt.ylabel('Loss')
plt.xlabel('Epoch')
plt.show()

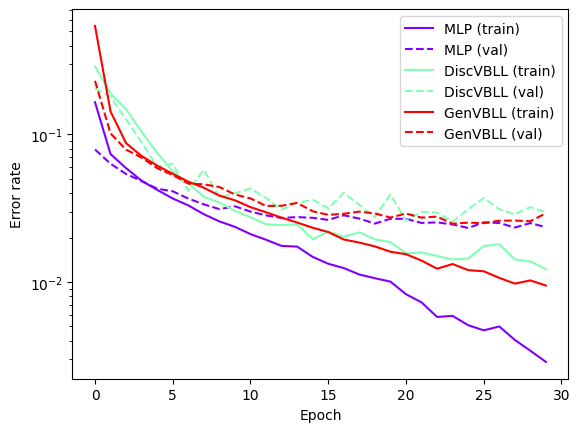

for i, (k,v) in enumerate(logs.items()):
plt.plot([1 - x for x in v['train_acc']], label=k + ' (train)', color=color[i])
plt.plot([1 - x for x in v['val_acc']], label=k + ' (val)', linestyle='--', color=color[i])
plt.ylabel('Error rate')
plt.xlabel('Epoch')
plt.legend()
plt.semilogy()
plt.show()

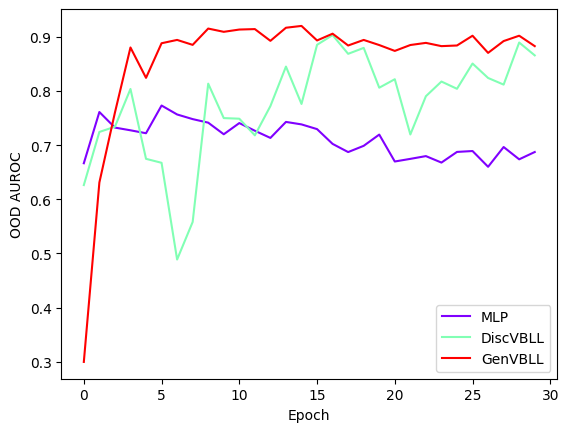

for i, (k,v) in enumerate(logs.items()):
plt.plot(v['ood_auroc'], label=k, color=color[i])
plt.legend()
plt.ylabel('OOD AUROC')
plt.xlabel('Epoch')
plt.show()
We will first define a simple MLP (with a standard last layer) as a baseline.
[3]:
class MLP(nn.Module):
"""
A standard MLP classification model.
cfg: a config containing model parameters.
"""
def __init__(self, cfg):
super(MLP, self).__init__()
self.params = nn.ModuleDict({
'in_layer': nn.Linear(cfg.IN_FEATURES, cfg.HIDDEN_FEATURES),
'core': nn.ModuleList([nn.Linear(cfg.HIDDEN_FEATURES, cfg.HIDDEN_FEATURES) for i in range(cfg.NUM_LAYERS)]),
'out_layer': nn.Linear(cfg.HIDDEN_FEATURES, cfg.OUT_FEATURES),
})
self.activations = nn.ModuleList([nn.ELU() for i in range(cfg.NUM_LAYERS)])
self.cfg = cfg
def forward(self, x):
x = x.view(x.shape[0], -1)
x = self.params['in_layer'](x)
for layer, ac in zip(self.params['core'], self.activations):
x = ac(layer(x))
return F.log_softmax(self.params['out_layer'](x), dim=-1)
We have defined a model, and can now write a train loop. In our regression notebook, we write a different train loop for the baseline models and for VBLL models, and highlight the differences. Here, our train function takes are argument in train_cfg indicating whether a model has a VBLL last layer or not. There is a handful of if statements in the code that are different for baseline models and for VBLL models, but the differences are relatively small.
[4]:
def eval_acc(preds, y):
map_preds = torch.argmax(preds, dim=1)
return (map_preds == y).float().mean()
def eval_ood(model, ind_dataloader, ood_dataloader, VBLL=True):
ind_preds = []
ood_preds = []
def get_score(out):
if VBLL:
score = out.ood_scores.detach().cpu().numpy()
else:
score = torch.max(out, dim=-1)[0].detach().cpu().numpy()
return score
for i, (x, y) in enumerate(ind_dataloader):
x = x.to(device)
out = model(x)
ind_preds = np.concatenate((ind_preds, get_score(out)))
for i, (x, y) in enumerate(ood_dataloader):
x = x.to(device)
out = model(x)
ood_preds = np.concatenate((ood_preds, get_score(out)))
labels = np.concatenate((np.ones_like(ind_preds)+1, np.ones_like(ind_preds)))
scores = np.concatenate((ind_preds, ood_preds))
fpr, tpr, thresholds = metrics.roc_curve(labels, scores, pos_label=2)
return metrics.auc(fpr, tpr)
def train(model, train_cfg):
"""Train a standard classification model with either standard or VBLL models.
"""
if train_cfg.VBLL:
# for VBLL models, set weight decay to zero on last layer
param_list = [
{'params': model.params.in_layer.parameters(), 'weight_decay': train_cfg.WD},
{'params': model.params.core.parameters(), 'weight_decay': train_cfg.WD},
{'params': model.params.out_layer.parameters(), 'weight_decay': 0.}
]
else:
param_list = model.parameters()
loss_fn = nn.CrossEntropyLoss() # define loss function only for non-VBLL model
optimizer = train_cfg.OPT(param_list,
lr=train_cfg.LR,
weight_decay=train_cfg.WD)
dataloader = DataLoader(mnist_train_dataset, batch_size = train_cfg.BATCH_SIZE, shuffle=True)
val_dataloader = DataLoader(mnist_test_dataset, batch_size = train_cfg.BATCH_SIZE, shuffle=True)
ood_dataloader = DataLoader(mnist_ood_dataset, batch_size = train_cfg.BATCH_SIZE, shuffle=True)
output_metrics = {
'train_loss': [],
'val_loss': [],
'train_acc': [],
'val_acc': [],
'ood_auroc': []
}
for epoch in range(train_cfg.NUM_EPOCHS):
model.train()
running_loss = []
running_acc = []
for train_step, data in enumerate(dataloader):
optimizer.zero_grad()
x = data[0].to(device)
y = data[1].to(device)
out = model(x)
if train_cfg.VBLL:
loss = out.train_loss_fn(y)
probs = out.predictive.probs
acc = eval_acc(probs, y).item()
else:
loss = loss_fn(out, y)
acc = eval_acc(out, y).item()
running_loss.append(loss.item())
running_acc.append(acc)
loss.backward()
optimizer.step()
output_metrics['train_loss'].append(np.mean(running_loss))
output_metrics['train_acc'].append(np.mean(running_acc))
if epoch % train_cfg.VAL_FREQ == 0:
running_val_loss = []
running_val_acc = []
with torch.no_grad():
model.eval()
for test_step, data in enumerate(val_dataloader):
x = data[0].to(device)
y = data[1].to(device)
out = model(x)
if train_cfg.VBLL:
loss = out.val_loss_fn(y)
probs = out.predictive.probs
acc = eval_acc(probs, y).item()
else:
loss = loss_fn(out, y)
acc = eval_acc(out, y).item()
running_val_loss.append(loss.item())
running_val_acc.append(acc)
output_metrics['val_loss'].append(np.mean(running_val_loss))
output_metrics['val_acc'].append(np.mean(running_val_acc))
output_metrics['ood_auroc'].append(eval_ood(model, val_dataloader, ood_dataloader, VBLL=train_cfg.VBLL))
print('Epoch: {:2d}, train loss: {:4.4f}'.format(epoch, np.mean(running_loss)))
print('Epoch: {:2d}, valid loss: {:4.4f}'.format(epoch, np.mean(np.mean(running_val_loss))))
return output_metrics
outputs = {}
We can now train a baseline MLP:
[5]:
device = "cuda" if torch.cuda.is_available() else "mps" if torch.backends.mps.is_available() else "cpu"
class train_cfg:
NUM_EPOCHS = 30
BATCH_SIZE = 512
LR = 1e-3
WD = 1e-4
OPT = torch.optim.AdamW
CLIP_VAL = 1
VAL_FREQ = 1
VBLL = False
class cfg:
IN_FEATURES = 784
HIDDEN_FEATURES = 128
OUT_FEATURES = 10
NUM_LAYERS = 2
model = MLP(cfg()).to(device)
outputs['MLP'] = train(model, train_cfg())
Epoch: 0, train loss: 0.5983
Epoch: 0, valid loss: 0.2720
Epoch: 1, train loss: 0.2489
Epoch: 1, valid loss: 0.2165
Epoch: 2, train loss: 0.1990
Epoch: 2, valid loss: 0.1779
Epoch: 3, train loss: 0.1639
Epoch: 3, valid loss: 0.1543
Epoch: 4, train loss: 0.1395
Epoch: 4, valid loss: 0.1355
Epoch: 5, train loss: 0.1209
Epoch: 5, valid loss: 0.1291
Epoch: 6, train loss: 0.1065
Epoch: 6, valid loss: 0.1129
Epoch: 7, train loss: 0.0937
Epoch: 7, valid loss: 0.1053
Epoch: 8, train loss: 0.0838
Epoch: 8, valid loss: 0.1009
Epoch: 9, train loss: 0.0752
Epoch: 9, valid loss: 0.1056
Epoch: 10, train loss: 0.0678
Epoch: 10, valid loss: 0.0980
Epoch: 11, train loss: 0.0609
Epoch: 11, valid loss: 0.0911
Epoch: 12, train loss: 0.0548
Epoch: 12, valid loss: 0.0893
Epoch: 13, train loss: 0.0528
Epoch: 13, valid loss: 0.0915
Epoch: 14, train loss: 0.0465
Epoch: 14, valid loss: 0.0886
Epoch: 15, train loss: 0.0416
Epoch: 15, valid loss: 0.0868
Epoch: 16, train loss: 0.0385
Epoch: 16, valid loss: 0.0962
Epoch: 17, train loss: 0.0350
Epoch: 17, valid loss: 0.0915
Epoch: 18, train loss: 0.0324
Epoch: 18, valid loss: 0.0865
Epoch: 19, train loss: 0.0318
Epoch: 19, valid loss: 0.0930
Epoch: 20, train loss: 0.0255
Epoch: 20, valid loss: 0.0906
Epoch: 21, train loss: 0.0228
Epoch: 21, valid loss: 0.0896
Epoch: 22, train loss: 0.0194
Epoch: 22, valid loss: 0.0949
Epoch: 23, train loss: 0.0190
Epoch: 23, valid loss: 0.0866
Epoch: 24, train loss: 0.0167
Epoch: 24, valid loss: 0.0934
Epoch: 25, train loss: 0.0156
Epoch: 25, valid loss: 0.0994
Epoch: 26, train loss: 0.0153
Epoch: 26, valid loss: 0.0986
Epoch: 27, train loss: 0.0130
Epoch: 27, valid loss: 0.0967
Epoch: 28, train loss: 0.0118
Epoch: 28, valid loss: 0.0966
Epoch: 29, train loss: 0.0096
Epoch: 29, valid loss: 0.1035
Now, let’s define a VBLL model. Note that the only difference is the out_layer switching from a linear layer to a VBLLClassificationD layer.
We also no longer need to include an output softmax, since that is included in the VBLL classification layer.
[6]:
class DiscVBLLMLP(nn.Module):
def __init__(self, cfg):
super(DiscVBLLMLP, self).__init__()
self.params = nn.ModuleDict({
'in_layer': nn.Linear(cfg.IN_FEATURES, cfg.HIDDEN_FEATURES),
'core': nn.ModuleList([nn.Linear(cfg.HIDDEN_FEATURES, cfg.HIDDEN_FEATURES) for i in range(cfg.NUM_LAYERS)]),
'out_layer': vbll.DiscClassification(cfg.HIDDEN_FEATURES, cfg.OUT_FEATURES, cfg.REG_WEIGHT, parameterization = cfg.PARAM, return_ood=cfg.RETURN_OOD, prior_scale=cfg.PRIOR_SCALE),
})
self.activations = nn.ModuleList([nn.ELU() for i in range(cfg.NUM_LAYERS)])
self.cfg = cfg
def forward(self, x):
x = x.view(x.shape[0], -1)
x = self.params['in_layer'](x)
for layer, ac in zip(self.params['core'], self.activations):
x = ac(layer(x))
return self.params['out_layer'](x)
[7]:
class train_cfg:
NUM_EPOCHS = 30
BATCH_SIZE = 512
LR = 3e-3
WD = 1e-4
OPT = torch.optim.AdamW
CLIP_VAL = 1
VAL_FREQ = 1
VBLL = True
class cfg:
IN_FEATURES = 784
HIDDEN_FEATURES = 128
OUT_FEATURES = 10
NUM_LAYERS = 2
REG_WEIGHT = 1./mnist_train_dataset.__len__()
PARAM = 'diagonal'
RETURN_OOD = True
PRIOR_SCALE = 1.
disc_vbll_model = DiscVBLLMLP(cfg()).to(device)
outputs['DiscVBLL'] = train(disc_vbll_model, train_cfg())
Epoch: 0, train loss: 3.6502
Epoch: 0, valid loss: 0.9098
Epoch: 1, train loss: 2.0208
Epoch: 1, valid loss: 0.6610
Epoch: 2, train loss: 1.4807
Epoch: 2, valid loss: 0.3486
Epoch: 3, train loss: 1.1293
Epoch: 3, valid loss: 0.2595
Epoch: 4, train loss: 0.9065
Epoch: 4, valid loss: 0.1816
Epoch: 5, train loss: 0.7412
Epoch: 5, valid loss: 0.2053
Epoch: 6, train loss: 0.6349
Epoch: 6, valid loss: 0.1367
Epoch: 7, train loss: 0.5440
Epoch: 7, valid loss: 0.1794
Epoch: 8, train loss: 0.4800
Epoch: 8, valid loss: 0.1147
Epoch: 9, train loss: 0.4257
Epoch: 9, valid loss: 0.1342
Epoch: 10, train loss: 0.3846
Epoch: 10, valid loss: 0.1473
Epoch: 11, train loss: 0.3472
Epoch: 11, valid loss: 0.1377
Epoch: 12, train loss: 0.3253
Epoch: 12, valid loss: 0.1053
Epoch: 13, train loss: 0.3079
Epoch: 13, valid loss: 0.1232
Epoch: 14, train loss: 0.2750
Epoch: 14, valid loss: 0.1231
Epoch: 15, train loss: 0.2691
Epoch: 15, valid loss: 0.1170
Epoch: 16, train loss: 0.2540
Epoch: 16, valid loss: 0.1458
Epoch: 17, train loss: 0.2518
Epoch: 17, valid loss: 0.1305
Epoch: 18, train loss: 0.2328
Epoch: 18, valid loss: 0.1152
Epoch: 19, train loss: 0.2238
Epoch: 19, valid loss: 0.1721
Epoch: 20, train loss: 0.2079
Epoch: 20, valid loss: 0.1115
Epoch: 21, train loss: 0.2016
Epoch: 21, valid loss: 0.1418
Epoch: 22, train loss: 0.1898
Epoch: 22, valid loss: 0.1278
Epoch: 23, train loss: 0.1856
Epoch: 23, valid loss: 0.1194
Epoch: 24, train loss: 0.1802
Epoch: 24, valid loss: 0.1353
Epoch: 25, train loss: 0.1901
Epoch: 25, valid loss: 0.1724
Epoch: 26, train loss: 0.1921
Epoch: 26, valid loss: 0.1773
Epoch: 27, train loss: 0.1768
Epoch: 27, valid loss: 0.1335
Epoch: 28, train loss: 0.1707
Epoch: 28, valid loss: 0.1522
Epoch: 29, train loss: 0.1576
Epoch: 29, valid loss: 0.1478
We can also train a VBLL MLP with a Generative VBLL last layer. Note that we are only changing the output layer. We can use the same config.
Note also that the train loss is not directly comparable between the generative and discriminative models.
[8]:
class GenVBLLMLP(nn.Module):
def __init__(self, cfg):
super(GenVBLLMLP, self).__init__()
self.params = nn.ModuleDict({
'in_layer': nn.Linear(cfg.IN_FEATURES, cfg.HIDDEN_FEATURES),
'core': nn.ModuleList([nn.Linear(cfg.HIDDEN_FEATURES, cfg.HIDDEN_FEATURES) for i in range(cfg.NUM_LAYERS)]),
'out_layer': vbll.GenClassification(cfg.HIDDEN_FEATURES, cfg.OUT_FEATURES, cfg.REG_WEIGHT, parameterization = cfg.PARAM, return_ood=cfg.RETURN_OOD, prior_scale=cfg.PRIOR_SCALE),
})
self.activations = nn.ModuleList([nn.ELU() for i in range(cfg.NUM_LAYERS)])
self.cfg = cfg
def forward(self, x):
x = x.view(x.shape[0], -1)
x = self.params['in_layer'](x)
for layer, ac in zip(self.params['core'], self.activations):
x = ac(layer(x))
return self.params['out_layer'](x)
[9]:
gen_vbll_model = GenVBLLMLP(cfg()).to(device)
outputs['GenVBLL'] = train(gen_vbll_model, train_cfg())
Epoch: 0, train loss: 1052.9993
Epoch: 0, valid loss: 1.0089
Epoch: 1, train loss: 411.9979
Epoch: 1, valid loss: 0.4640
Epoch: 2, train loss: 224.6902
Epoch: 2, valid loss: 0.3177
Epoch: 3, train loss: 143.0866
Epoch: 3, valid loss: 0.2567
Epoch: 4, train loss: 99.4332
Epoch: 4, valid loss: 0.2219
Epoch: 5, train loss: 73.2394
Epoch: 5, valid loss: 0.1944
Epoch: 6, train loss: 56.1805
Epoch: 6, valid loss: 0.1693
Epoch: 7, train loss: 44.3615
Epoch: 7, valid loss: 0.1641
Epoch: 8, train loss: 35.9223
Epoch: 8, valid loss: 0.1493
Epoch: 9, train loss: 29.5990
Epoch: 9, valid loss: 0.1312
Epoch: 10, train loss: 24.7483
Epoch: 10, valid loss: 0.1246
Epoch: 11, train loss: 20.9903
Epoch: 11, valid loss: 0.1157
Epoch: 12, train loss: 17.9761
Epoch: 12, valid loss: 0.1115
Epoch: 13, train loss: 15.5314
Epoch: 13, valid loss: 0.1111
Epoch: 14, train loss: 13.5226
Epoch: 14, valid loss: 0.1042
Epoch: 15, train loss: 11.8618
Epoch: 15, valid loss: 0.0962
Epoch: 16, train loss: 10.4580
Epoch: 16, valid loss: 0.1000
Epoch: 17, train loss: 9.2954
Epoch: 17, valid loss: 0.0978
Epoch: 18, train loss: 8.2763
Epoch: 18, valid loss: 0.0984
Epoch: 19, train loss: 7.4101
Epoch: 19, valid loss: 0.0914
Epoch: 20, train loss: 6.6650
Epoch: 20, valid loss: 0.0939
Epoch: 21, train loss: 6.0070
Epoch: 21, valid loss: 0.0903
Epoch: 22, train loss: 5.4354
Epoch: 22, valid loss: 0.0935
Epoch: 23, train loss: 4.9440
Epoch: 23, valid loss: 0.0886
Epoch: 24, train loss: 4.4972
Epoch: 24, valid loss: 0.0890
Epoch: 25, train loss: 4.1072
Epoch: 25, valid loss: 0.0905
Epoch: 26, train loss: 3.7585
Epoch: 26, valid loss: 0.0943
Epoch: 27, train loss: 3.4438
Epoch: 27, valid loss: 0.0958
Epoch: 28, train loss: 3.1712
Epoch: 28, valid loss: 0.0946
Epoch: 29, train loss: 2.9195
Epoch: 29, valid loss: 0.1095
And finally, we can visualize performance of all models.
[10]:
viz_performance(outputs)
